Discussion Starter #1
I want to start off by saying that this was a collaborative effort,

I did not do this Alone.

And,

My Bike, is not the only Bike, that is Running Great Now, with this Exact or very Similar Single Carb Conversion setup.

This Single carb. Setup, is a Forumla for success, out of the box success, with the 32DFT 2-barrel Progressive Carb. No Jetting at all, all i did was, remove the Elec. auto choke (It is Not needed) start the engine, and set the Idle to 1000 rpm, Then inspect for leaks, air up the tires and Go for a Ride.

I am Not Selling Anything,

I want to provide to everyone, the Best running Carb.'d Intake system available for the 4cyl. Goldwing.

Bold statement, i know,

Read through My documentation here of all the efforts Involved, to get to this Point By all that have contributed to achieve this Goal.

Thanks go to The following people that made this all Possible;
in no particular order,

Joe Known as JoeDrum He is running this Single Carb. System Currently
on the ClassicGoldWing forum http://www.classicgoldwings.com/forum/viewtopic.php?f=9&t=6619
Dan Filipi Also Classic Goldwing Forum He is building this Single Carb. System Currently
on the ClassicGoldWing forum http://www.classicgoldwings.com/foru...php?f=9&t=6619
As well as Others on that site that have contributed.
Captain MidNight, I think he is on every Site He is running this Single Carb. System Currently
Robbnc, Here On this site He is running this Single Carb. System Currently
& Me
Westgl I am on all Goldwing forums pretty much. I am running this Single Carb. System Currently

My Bike runs Flawless, no Hesitation or Bogging at all at any time while riding.

The others listed above, are having the same great results, that i am having.

It is what Honda should have provided.

Pro's
Idles Great at 1000RPM,
Smooth throttle, No bogging or hesitation at all, anywhere.
No re-jetting, or fooling with jets, just bolt on and Ride
Engine Revs Extremely Fasst! to Redline.
Instant starting, Every time.
This carb has a Accelerator pump, and is fantastic for throttle response, and start up.
No choke needed at all
Engine has a Lot More Torque, long Manifold Runners = Big Torque
Engine pulls from a Lower RPM, 2000-rpm easily in 4th gear No Lugging (But be realistic, the bikes power curve is 3K and Up, this will provide extreme acceleration when going through the gears)
I even had it pull from 1800 Rpm, In 4th gear No lugging
This is more like Goldwing 6 Cylinder torque.
This more Engine Torque & Power, means more power for pulling away from a stop much quicker than stock, roll on power is much Better, Going through the gears, Is Greatly Improved, More Power for where we Ride our bikes in that 95% of the time, But The TOP end Rush is Also Improved.


Con's
I will have to get back to you when i find one.
______________________________________________________________________________________________

Note: I do not have any MPG figures as it is too early to tell what that might be with this new single carb. conversion.

I have a Weber 32DFT 2bbl. progressive carb on a VW Type IV manifold using silicone rubber hose runners to the Oem GL1100 head stub Manifolds.

It Runs Excellent, and the engine revs. to 8K+RPM, Very Fast revving.

It runs so well, there is No jetting that needs to be done.

It Runs Great Right out of the Box.

I have done Absolutely No carb. tuning, other than set the Idle Speed screw to 1000- rpms for a great idle.

Thanks to CaptainMidnight85, for the carb. suggestion, and his help.

Update:
I have gone through 3 revisions so far, this thread will outline those changes, I will be working of revision #4 soon that uses S.S. Brushed and polished Grab bars like the Moen grab bars at Lowes & Home depot, these come out to a very reasonably priced intake tubes that look very professional.

The weber Carb from Tom is still running very well

Next I will build some venturi's

Currently I have been riding my Single carb Conversion and trying to get some MPG figures for my 83' GL1100.

My fuel economy figures are better than i though they would be if i stay on the primary barrel, but this carb is great cause you have a dual purpose carb all in one good MPG and a Hot Rod side too.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #2

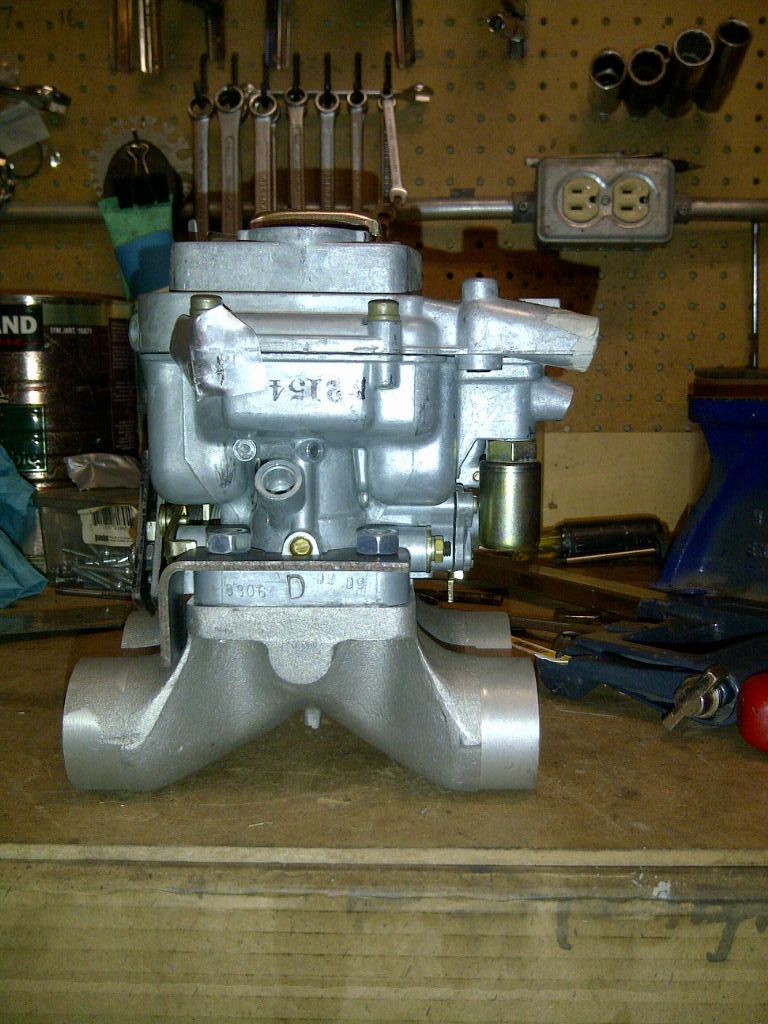

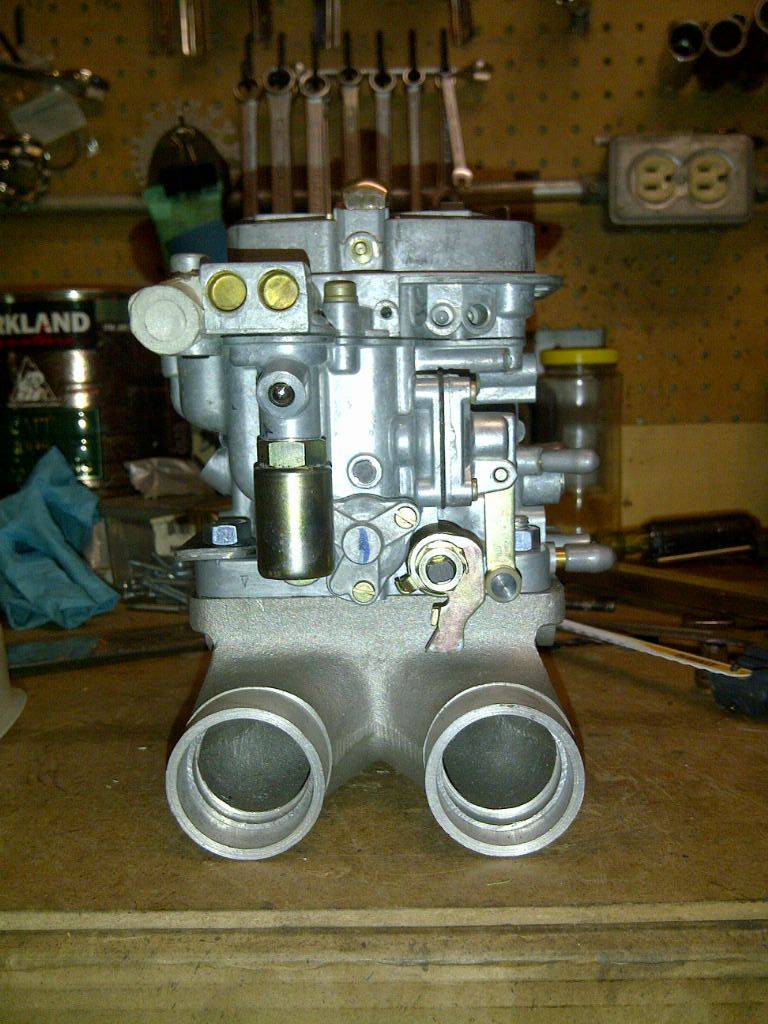

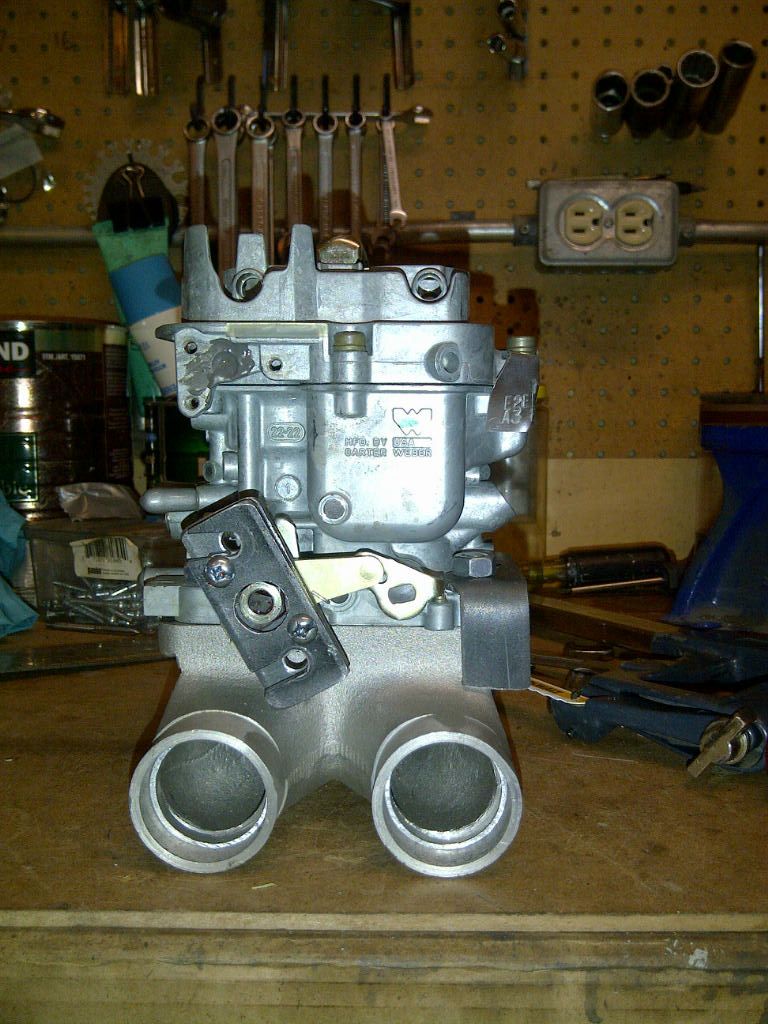

The Carb. is a Weber 32DFT it is a 32/32mm Progressive carb

It works very Well in part due to a small Choked Venturi, 32x32mm throttle bores that are choked down to just 22mm each this speeds up the Fuel air charge, that combined with the long intake runners provide Great engine Torque, and More usable power than you ever thought possible.

We are using a VW Type IV alum. Manifold Plenum

Many people have used this many without success,

Until Now,

It is our winning combination, that just works very well.

We do not try to use a carb. that is Way, Way to big in either Air or Fuel delivery, that plus the rest of this system all provides a winning combination.

I removed the auto choke on my 32DFT. as the carb. is too big to fit between the frame for me comfortably with the auto choke on it.

There is a vacuum port under the auto choke, that needs to be covered/Plugged.

Revised a screw that is taken off the choke can be screwed into the vacuum port, to block it.

or

I made a small block off plate, a manual choke could be made, very easily.

I got rid of the oem inlet can fuel filter going into the carb. & put a 1/8" pipe thread 90degree brass fuel inlet fitting.

I took off the front solenoid, and put in a plug, and another plug in under the fuel inlet is a smog inlet another plug here.

I removed the oem Choke lever arm on throttle shaft.

I bought a uni-Link Kit.

The Uni-Link is what i used to set up my throttle cable, it Holds the stock Pull cable end, and does a pretty good reliable job, I am getting full throttle, at this point and still have more movement at my hand to go than the Carb. needs to go to full throttle at the carb.

From what I have read, & when I pulled that vac. unit apart, it looks like there is some adjustment in that advance unit, to advance the timing some.

I need to make a bracket for the cable Adjustment Hold.

I have a design sketched out, for the stock Cable adjustment Hold.

The stock cable may be too long, If that is the case I have another cable that is 4" shorter, it looks just like the 83' GL1100 cable only 4" shorter, i think it was for a CB750 but i will have to verify that I have what bike it was for on the cable.

Only problem is finding stuff in my new shop is tuff, a lot of stuff still in boxes after the move, but the new shop is HUGH!!!

My bike is a 83' GL1100 and has a Vacuum operated advance.

I am using the vacuum port front right to advance the timing

I am Contemplating adding heat to the manifold center section.

But i am going to try it without heat first.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #3
One thing i did first, on the OEM intake Manifolds, was to liberally coat the the Rubber sections with ATF to clean and soften the rubber, i left it on for about an hour, then wiped off all the ATF, the rubber looked like new, and felt slightly softer, I want a good seal with No Leaks.

Here Is a picture, Not done yet but coming along.


Attachments

·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #4
I have been thinking of doing a single carb conversion since two years ago, But the move to a New House set me back.

Note i have not tried any of these as this is my first Single carb. Conversion

I currently have 5 carbs. in my shop ready for a single carb conversion.

I have enough to play with, to get a single carb working.

They are,

1. Weber 32/32, DFT Progressive New carb. $90.00 ea good price point Availability is good.
2. Weber 24/25, 740 Progressive Newly Rebuilt. I paid $125.00+ shipping, availability is OK, but could be better. I have seen these listed for $80.00+ shipping that need a rebuild, to over $300. + shipping that have been rebuilt.
The two carbs above look Identical in every way, except venturi size.

3. Weber 38DGAS 38/38 Progressive this was going to be for a Single carb conversion for a GL1500 (stock OEM CV Carbs are two 33mm venturi carbs) The 38DGAS may be Over carb'ed, So maybe the 32 DFT may be the right choice for the GL1500 Single carb. Conversion

Below i have two of each carb as they were going to be a dual carb setup. But they could be good single carb too
4. Solex 34Pict3 single barrel Dual carb setup
5. Solex 30Pict1 Round bowl Single barrel Dual carb setup


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #5
Looking at the carb in your lap, with the three vacuum port tubes facing you the one on the right is for vacuum advance of timing.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #6
Putting those hoses on can be a three or four handed deal, especially the last hose.

I wish i had the right connection in the shop, I haven't changed them to what I need for my plasma gun and welder, it's a different connector.

I could cut out a bracket in no time.

I went and got the rest of the clamps i needed today, got the piece of hose for the vacuum advance, so Vacuum advance is hooked up, and fuel line is hooked up.

Now i need to put back the cooling system.

I need to make the bracket, maybe i can saw and file it, this is tough using manual hand tools, slow to.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #7
More pictures,

7th picture down is my uni kit, for the throttle, it works really well so far and it positively locks the throttle cable end in, so it cannot get loose.

Next is to make my cable stop bracket, sure would be nice if my plasma cutter was working, i could make more than 20 of them in the time it takes me to make one by hand.


Attachments

·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #8

·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #9
With the VW manifold Installed, I can make an adapter plate, to sit on the manifold and try different carbs.

I can try some of the single barrel carbs I have like my

Solex 34pict3 34mm Single bbl.
Solex 30pict1 30mm Single bbl.

Or my other progressive Two barrel on this.
This carb fits without the adapter plate

32DFT it is a 32x32 2bbl. and is identical to the
740 carb, It is a 24/25mm two bbl progressive carb. other than the venturi size. From what I can see any way.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #11
Also in talking to the engineer about these carbs he said that he has fuel pressure tested them without the fuel cut off solenoid installed, on the front of the carb to 10PSI and he did not get any fuel past the float valve.

This is Great Because this is the main reason I am converting Hydrolock fuel leaking past the float valve

and hydro lock my engine dumping fuel on top of the engine and all over the floor.

That should be a thing of the past, I have my fuel valve set to on and will leave it set to on, to test it.

10psi is way more than we should ever need. a Electric fuel pump should only be putting out 3-4psi maybe 5psi max. for Carb.

He also said that the solenoid was not for a fuel cut off like i thought it was and would not work as that function, and would only provide me problems.

This sounded promising to cure my Hydrolock situation.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #12
Well I started it today, but only had it running for about 15 seconds, I still need to put the cooling system back together, Radiator is still off of the bike.

I had to give it some throttle to keep it running, I will try adding some manual choke to see if that helps.

After I get the cooling system re-installed, and check for cooling leaks and vacuum leaks.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #13
Update:

Cooling system is back on.

Started it back up.

No coolant leaks, and no Vacuum leaks.

WOW!! WE!!! and I don't normally use 60's phrases.

Oh! I have the 32DFT on there right now it is a 32/32mm Progressive two barrel.

Idles at 1000 rpm very nicely for it not being completely warmed up.

Shut it down, then re-started it, it started right up instantly, It is very nice throttle, instant fast reving to 8+K.

Held throttle open, at different throttle positions, very smooth

I would like to go for a test ride, but i dont have the throttle hold bracket done yet.

I did not have to use any choking at all, starting or running,


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #14
More pictures,

If i could figure out how to load a HIGH res video, or compress it down some I would, Not sure how i would do it.

Pics for now.

Pic#1 is the Cable Hold bracket that needs to be cut out.

I also need to finish my Air filter, I bought a carb bottom for my new single carb. and going to put the top and filter you see in the picture I have to graft the two together.

Then get a longer crank case breather hose and a fitting and run it up to the new air filter base.


Attachments

·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #15
That Throttle cable hold bracket goes under the front two carb. hold down bolts, and secures the throttle cable like the stock one did.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #16
I may not have mentioned this.

No hiccups at all, Idles very nice and smooth, at 1000-1100 rpm.

Revved it to 2k held it there, held it at 3k, then 4k for 30secs. each very smooth.

Revved into secondaries to 8k+ Nice and very fast!!

Surprisingly Fast to 8K+ really fast.

No flat spots at all, Only sweet spots.

This was all at No load, as i have not made my throttle Hold Bracket to hold the cable.

Restarts are excellent.

Starts Instantly.

It really revvs FAST


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #17
I did change/upgrade My Ignition to the MP08 GL1500 Coils and used the GL1500 spark plug Wires to.

If you look in the pictures you can see that the spark plug wires a couple of them take a funny turn.

But they were in spec for a GL1500 that is.

The GL1500 ignition coils and wires are much better than what I had on the bike before.

She's as Sweet as BBQ Pork Meat, at least that's what Kermit said about Mrs. Piggy


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #18
Robbnc

Good glad to hear you got yours running to.

How does it run?


·
Registered
Joined
·
51 Posts
Robbnc

Good glad to hear you got yours running to.

How does it run?
From your description I'd say exactly the same. I turned the idle stop down and it's smooth just over 1000. Revs fast right to redline, of course with no load. No hesitation at all, anywhere. I let it run up to operating temp and I plan to run it through several heat cycles tomorrow.


·
Premium Member
Joined
·
1,331 Posts
Discussion Starter #20
Did your bike run at normal temp or did it run a little hotter than normal,

meaning warmed up faster, fan came on more often,

probably because i was in the back of the shop and bike Not moving,

no air flow should have put a fan in front of the radiator, it was warm today 90 degrees.

That may be all it is, fan came on and it cooled right down.
